Messenger WS Socket (Old OnSystem Chat)

This project took more than ten hours to try to design a native messaging infrastructure.
Its database is a bit complicated, you can check and view its queries.

It was a very interesting and good experience.

Features

• [x] Pure websocket (Not socket.io)
• [x] Auth/Login
• [x] Chat
• [x] Private Chat
• [x] Group Chat
• [x] Auto-reconnect
• [x] Detect list of online users and active rooms

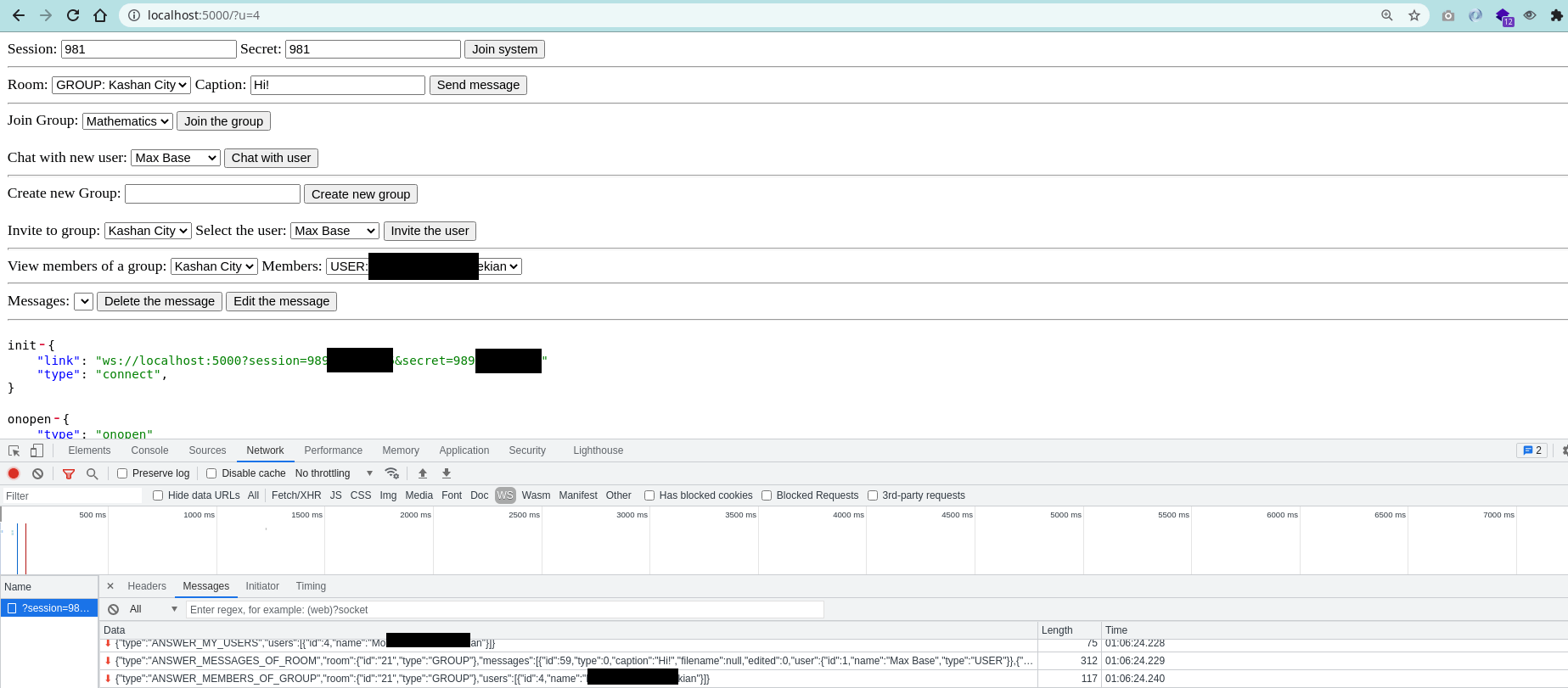

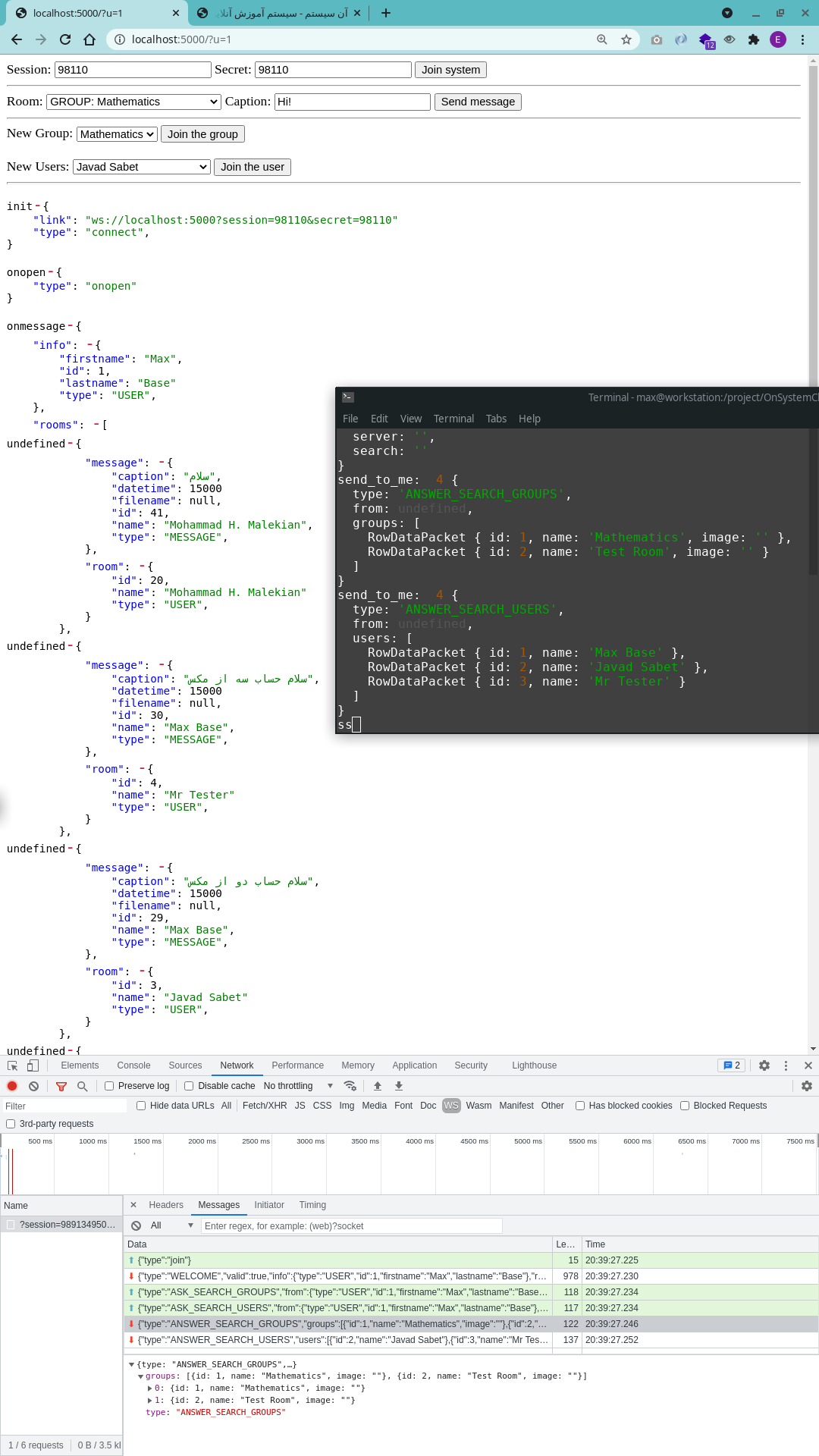

Preview client-side

Using

node app.js

Open the http://localhost:5000/ in the browser.

If you easily want to test and debug, there are some test links:

• http://localhost:5000/?u=1
• http://localhost:5000/?u=2
• http://localhost:5000/?u=3
• http://localhost:5000/?u=4

Database

Mariadb, please import onsystem.sql file and put your database configuration details in app.js file.

Queries

AUTH CONNECT

SELECT user.*
        FROM auth
        INNER JOIN user ON auth.user = user.id
        WHERE session = '...' AND secret = '...' AND status = 1
        ;

Old version: PV CHAT LIST OF user2

SELECT
    MAX(message.id) as message_id,
    (case when (roomtype = 1) THEN 'GROUP' ELSE 'USER' END) as to_type,
    user2.firstname as to_firstname,
    user2.lastname as to_lastname,
    user as from_id,
    (case when (message.type = 0) THEN 'MESSAGE' ELSE 'FILE' END) as message_type,
    caption,
    user.firstname as from_firstname,
    user.lastname as from_lastname
    FROM
        message
    INNER JOIN
        user
        ON
            user.id = message.user
    INNER JOIN
        user as user2
        ON
            user2.id = message.room
    WHERE
    roomtype=2
        AND (room = ${socket.info.id} OR user = ${socket.info.id})
    GROUP BY user
    ORDER BY message_id DESC
    ;

Old version: GROUP CHAT LIST OF user2

SELECT
        message.id as message_id,
        (case when (message.roomtype = 1) THEN 'GROUP' ELSE 'USER' END) as to_type,
        room.name as to_firstname, '' as to_lastname,
        message.user as from_id,
        (case when (message.type = 0) THEN 'MESSAGE' ELSE 'FILE' END) as message_type,
        message.caption,
        user.firstname as from_firstname,
        user.lastname as from_lastname
    FROM
        message
    INNER JOIN
        room_member
        ON
            message.room = room_member.room
    INNER JOIN
        user
        ON
            user.id = message.user
    INNER JOIN
        room
        ON
            room.id = message.room
    WHERE
        room_member.user = ${socket.info.id}
        AND
        message.roomtype = 1
    ORDER BY message_id DESC
    ;

Old: ALL CHAT LIST OF user2

(
    SELECT
        MAX(message.id) as message_id,
        (case when (roomtype = 1) THEN 'GROUP' ELSE 'USER' END) as to_type,
        user2.firstname as to_firstname,
        user2.lastname as to_lastname,
        user as from_id,
        (case when (message.type = 0) THEN 'MESSAGE' ELSE 'FILE' END) as message_type,
        caption,
        user.firstname as from_firstname,
        user.lastname as from_lastname
        FROM
            message
        INNER JOIN
            user
            ON
                user.id = message.user
        INNER JOIN
            user as user2
            ON
                user2.id = message.room
        WHERE
        roomtype=2
            AND (room = ${socket.info.id} OR user = ${socket.info.id})
        GROUP BY user
    )
    UNION
    (
        SELECT
            message.id as message_id,
            (case when (message.roomtype = 1) THEN 'GROUP' ELSE 'USER' END) as to_type,
            room.name as to_firstname, '' as to_lastname,
            message.user as from_id,
            (case when (message.type = 0) THEN 'MESSAGE' ELSE 'FILE' END) as message_type,
            message.caption,
            user.firstname as from_firstname,
            user.lastname as from_lastname
        FROM
            message
        INNER JOIN
            room_member
            ON
                message.room = room_member.room
        INNER JOIN
            user
            ON
                user.id = message.user
        INNER JOIN
            room
            ON
                room.id = message.room
        WHERE
            room_member.user = ${socket.info.id}
            AND
            message.roomtype = 1
    )
    ORDER BY message_id DESC
    ;

Query

SELECT
        message.id as message_id,
        message.caption as message_caption,
        message.type as message_type,
        message.filename as message_filename,
        (SELECT CONCAT(user.firstname, " ", user.lastname) as name FROM user as a WHERE id = message.user) as message_sender,
        room.id as room_id,
        (CASE WHEN room.name IS NULL THEN 'USER' ELSE 'GROUP' END) as room_type,
        IFNULL(room.name, (SELECT CONCAT(u.firstname, " ", u.lastname) AS u FROM room_member as r INNER
               JOIN user as u ON r.user = u.id WHERE r.room = room.id AND u.id != 1
        )) as room_name
    FROM
        room_member
    INNER JOIN
        room
        ON
            room_member.room = room.id
    INNER JOIN
        message
        ON
            message.room = room.id
    INNER JOIN
        user
        ON
            user.id = message.user
    WHERE
        room_member.user = 1
    #    AND
    #    room.id = 3
    GROUP BY
        room.id
    ORDER BY
        message_id DESC
    ;

SELECT NUMBER OF PERSONAL ROOM WITH OTHER ACCOUNTS YOU HAVE ('1' user)

SELECT
        COUNT(*)
        AS
            count
    FROM
    (
        SELECT
            #COUNT(room.id) as count
            room.id
            #CONCAT(user.firstname, ' ', user.lastname) as name,
            #(SELECT COUNT(r.id) FROM room_member as r WHERE room = room.id) as members,
            #(SELECT COUNT(rm.user) FROM room_member as rm WHERE rm.room = room.id AND rm.user = 1) as my_at
        FROM
            room
        INNER JOIN
            room_member
            ON
                room_member.room = room.id
        INNER JOIN
            user
            ON
                user.id = room_member.user
        WHERE
            user.id != 1
        #   (
        #        room_member.user = 4
        #        OR
        #        room_member.user = 1
        #    )
            AND
            room.isgroup = 0
        GROUP BY
            room.id
        HAVING
            (SELECT COUNT(rm.user) FROM room_member as rm WHERE rm.room = room.id AND rm.user = 1) = 1
        #    AND
        #    (SELECT COUNT(rm.user) FROM room_member as rm WHERE rm.room = room.id AND rm.user != 1) = 2
            AND
            (SELECT COUNT(r.id) FROM room_member as r WHERE room = room.id) = 2

        #(SELECT COUNT(id) FROM `room_member` WHERE user = 4;
        #SELECT COUNT(id) FROM `room_member` WHERE user = 1;
    )
    as count
    ;

DOES USER `1' has a private room with user '3'? if count is 0 mean no, if that is 1, so yes they have a private room

SELECT
        3
    IN
    (
        SELECT
            user.id
        FROM
            room
        INNER JOIN
            room_member
            ON
                room_member.room = room.id
        INNER JOIN
            user
            ON
                user.id = room_member.user
        WHERE
            user.id != 1
            AND
            room.isgroup = 0
        GROUP BY
            room.id
        HAVING
            (SELECT COUNT(rm.user) FROM room_member as rm WHERE rm.room = room.id AND rm.user = 1) = 1
            AND
            (SELECT COUNT(r.id) FROM room_member as r WHERE room = room.id) = 2
    )
    as count
    ;
