:fire: [NIPS2021, TPAMI2024] YOLaT & YOLaT++: Powerful and Efficient Graph Models for Vector Graphics Recognition

:scroll: Introduction

This repository is the official PyTorch implementation of our two powerful vector graphics recognition models.

NeurIPS-2021 paper: Recognizing Vector Graphics without Rasterization.

TPAMI-2024 paper: Hierarchical Recognizing Vector Graphics and A New Chart-based Vector Graphics Dataset

<p align="center">

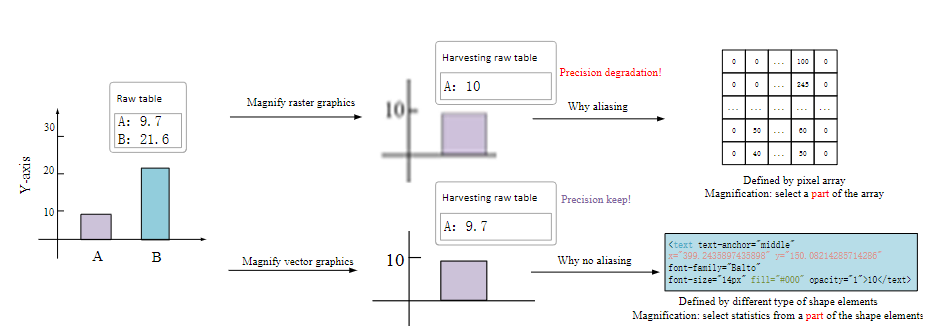

Rendering vector graphics into pixel arrays can result in significant memory costs or loss of information, as demonstrated in above Figure 1. Additionally, this process discards high-level structural information within the primitives, which is critical for recognition tasks such as identifying corners and contours.
To summarize, we propose You Only Look at Text series (YOLaT & YOLaT++) which addresses issues with raster graphics by taking in textual documents of vector graphics as input.

Environments

conda create -n your_env_name python=3.8
conda activate your_env_name
sh deepgcn_env_install.sh

YOLaT

1. Data Preparation

Floorplans

a) Download and unzip the Floorplans dataset to the dataset folder: data/FloorPlansGraph5_iter

b) Run the following scripts to prepare the dataset for training/inference.

cd utils
python svg_utils/build_graph_bbox.py

Diagrams

a) Download and unzip the Diagrams dataset to the dataset folder: data/diagrams

b) Run the following scripts to prepare the dataset for training/inference.

cd utils
python svg_utils/build_graph_bbox_diagram.py

2. Training & Inference

Floorplans

cd cad_recognition
CUDA_VISIBLE_DEVICES=0 python -u train.py --batch_size 4 --data_dir data/FloorPlansGraph5_iter --phase train --lr 2.5e-4 --lr_adjust_freq 9999999999999999999999999999999999999 --in_channels 5 --n_blocks 2 --n_blocks_out 2 --arch centernet3cc_rpn_gp_iter2  --graph bezier_cc_bb_iter --data_aug true  --weight_decay 1e-5 --postname run182_2 --dropout 0.0 --do_mixup 0 --bbox_sampling_step 10

Diagrams

cd cad_recognition
CUDA_VISIBLE_DEVICES=0 python -u train.py --batch_size 4 --data_dir data/diagrams --phase train --lr 2.5e-4 --lr_adjust_freq 9999999999999999999999999999999999999 --in_channels 5 --n_blocks 2 --n_blocks_out 2 --arch centernet3cc_rpn_gp_iter2  --graph bezier_cc_bb_iter --data_aug true  --weight_decay 1e-5 --postname run182_2 --dropout 0.0 --do_mixup 0 --bbox_sampling_step 5

YOLaT++

<p align="center">

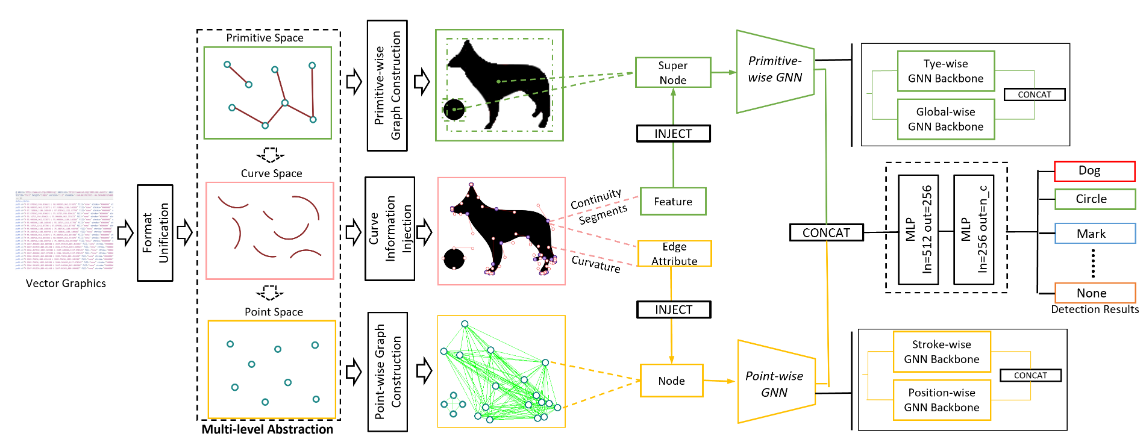

YOLaT++ is introduced, characterized by a hierarchical structure designed for VGs, spanning three levels: Primitive, Curve, and Point. Additionally, YOLaT++ employs a position-aware enhancement strategy to effectively differentiate similar primitives.

Citation

BibTex:

@inproceedings{jiang2021recognizing,
title={{Recognizing Vector Graphics without Rasterization}},
author={Jiang, Xinyang and Liu, Lu and Shan, Caihua and Shen, Yifei and Dong, Xuanyi and Li, Dongsheng},
booktitle={Proceedings of Advances in Neural Information Processing Systems (NIPS)},
volume={34},
number={},
pages={},
year={2021}}

@article{journals/pami/DouJLYSSDWLZ24,
  author       = {Shuguang Dou and Xinyang Jiang and Lu Liu and Lu Ying and Caihua Shan and Yifei Shen and Xuanyi Dong and Yun Wang and  Dongsheng Li and Cairong Zhao},
  title        = {Hierarchically Recognizing Vector Graphics and {A} New Chart-Based
                  Vector Graphics Dataset},
  journal      = {{IEEE} Trans. Pattern Anal. Mach. Intell.},
  volume       = {46},
  number       = {12},
  pages        = {7556--7573},
  year         = {2024},
  doi          = {10.1109/TPAMI.2024.3394298},
}

Please do consider :star2: star our project to share with your community if you find this repository helpful!

Related Dataset

Benchmark for VG-based Detection and Chart Understanding
